پچ کورد های شبکه سری کوپریوم

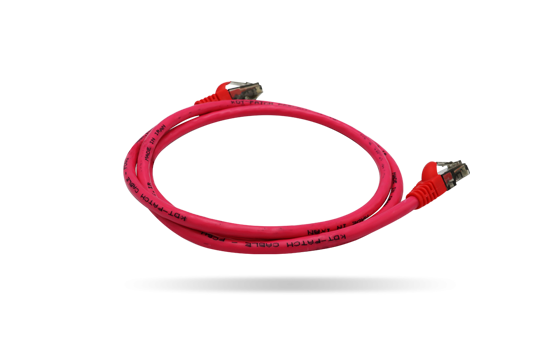

Cat6 - UTP
| Physical | |
| AWG | 24 |
| Termination | Rj45 |
| Color | Yellow / Blue / Red / Gray / Green / Violet |
| Jacket | PVC-LSZH-FR |
| Transmission Characteristics | |
| Type | Cat6 UTP |
| Mechanical Characteristics | |
| Maximum Pulling Force (IEC 60794-1-2-E1) |
200N |
| Packaging | Individually Packaged in a Plastic Bag |
| Usage Characteristics | |
| Minimum Static Operating Bending Radius | 10mm |
| Operating Temperature, Range | -10 ~ 50°C |
| Meter | 50 / 100 / 200 / 300 / 500 CM |

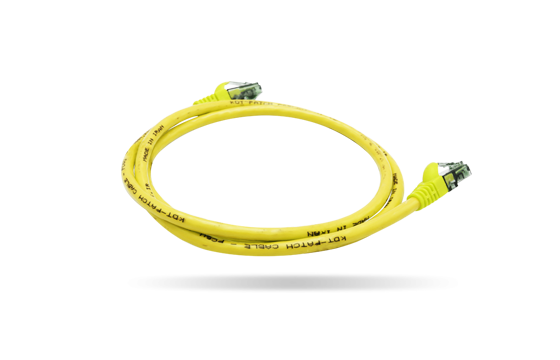

Cat6 - SFTP
| Construction Characteristics | |
| AWG | 24 |
| Termination | Rj45 |
| Color | Yellow / Blue / Red / Gray / Green / Violet |
| Jacket | PVC-LSZH-FR |
| Transmission Characteristics | |
| Type | Cat SFTP |
| Mechanical Characteristics | |
| Maximum Pulling Force (IEC 60794-1-2-E1) |
200N |
| Packaging | Individually Packaged in a Plastic Bag |
| Usage Characteristics | |
| Minimum Static Operating Bending Radius | 10mm |
| Operating Temperature, Range | -10 ~ 50°C |
| Meter | 50 / 100 / 200 / 300 / 500 CM |
