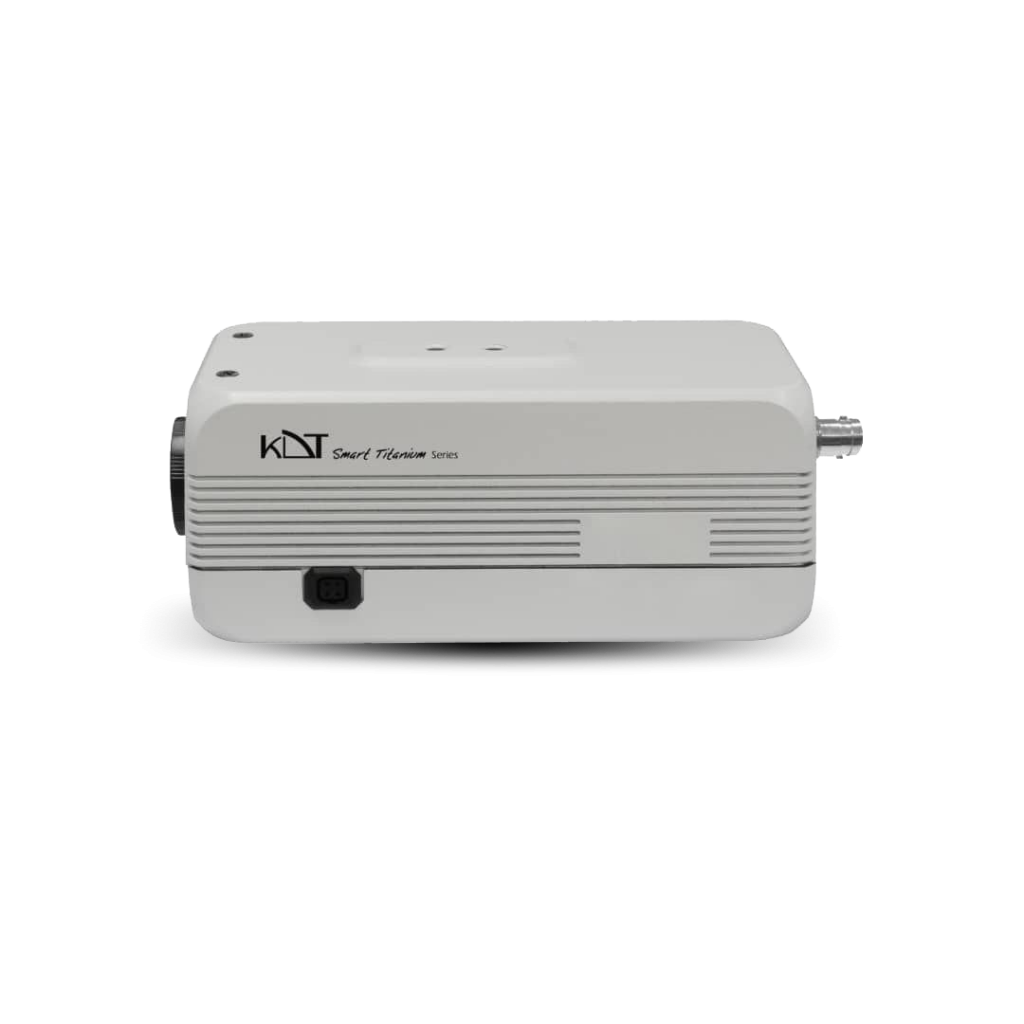

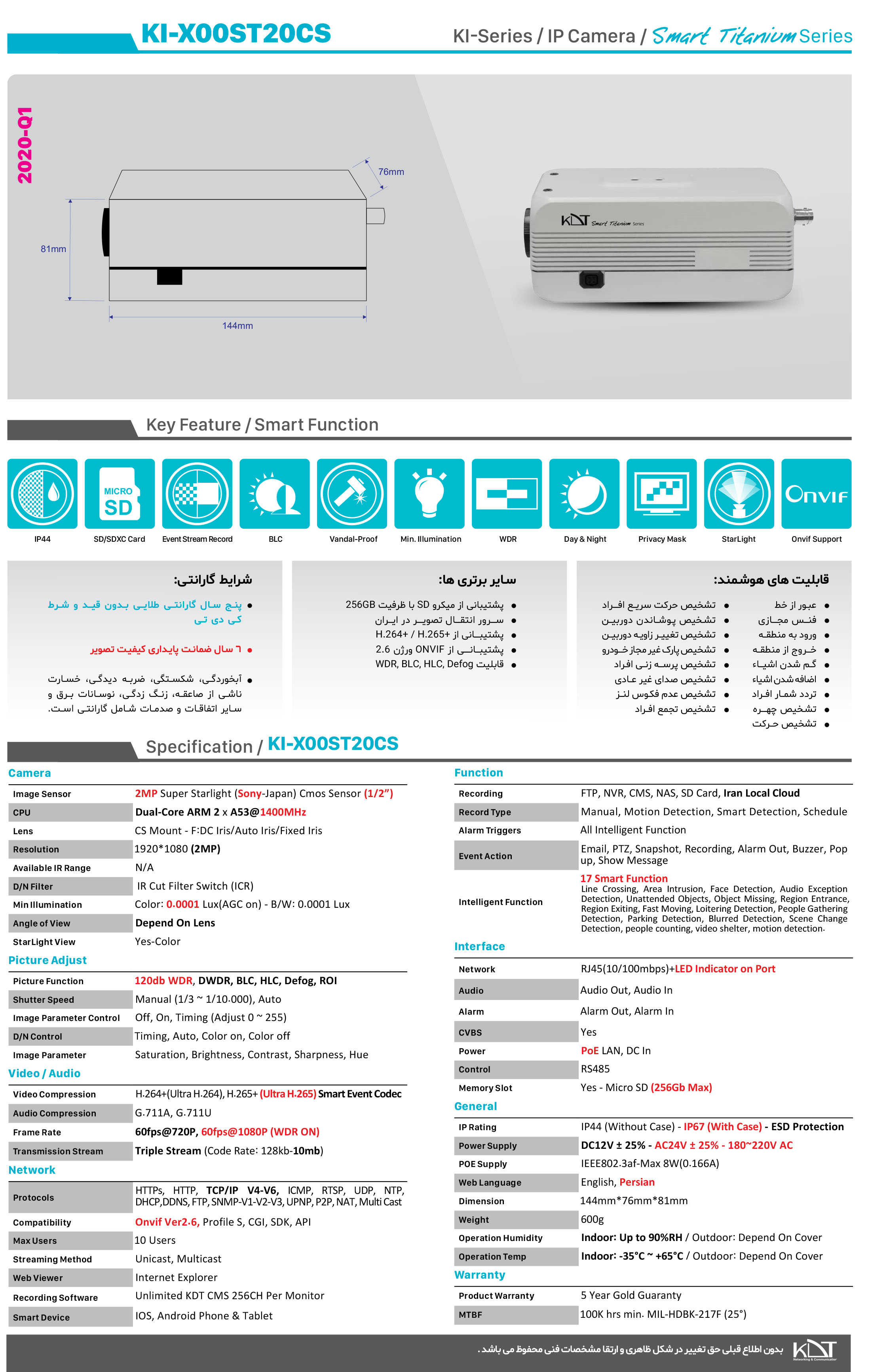

دوربین مداربسته کی دی تی مدل KI-X00ST20CS

پشتیبانی از میکرو SD با ظرفیت 256GB
سرور انتقال تصویر در ایران
پشتیبانی از H.265PLUS / H.264PLUS
پشتیبانی از ONVIF ورژن 2.6
قابلیت WDR,BLC,HLC,Defog

پنج سال گارانتی طلایی بدون قید و شرط کی دی تی

6 سال ضمانت پایداری کیفیت تصویر

آبخوردگی ، شکستگی ، ضربه دیدگی ، خسارت ناشی از صاعقه ، زنگ زدگی ، نوسانات برق ، سایر اتفاقات و صدمات

Camera __________
Image Sensor	2MP Super Starlight (Sony-Japan) Cmos Sensor (1/2”)
CPU	Dual-Core ARM 2 x A53@1400MHz
Lens	CS Mount – F:DC Iris/Auto/Fixed Iris
Resolution	1920*1080(2MP)
Available IR Range	N/A
D/N Filter	IR Cut Filter Switch (ICR)
Min Illumination	Color: 0.0001 Lux(AGC on) – B/W: 0.0001 Lux
Angel of View	Depend On Lens
StarLight View	Yes-Color
Picture Adjust __________
Picture Function	120db WDR, DWDR, BLC, HLC, Defog, ROI
Shutter Speed	Manual (1/3 ~ 1/10.000), Auto
Image Parameter Control	Off, On, Timing (Adjust 0 ~ 255)
D/N Control	Timing, Auto , Color on, Color off
Image Parameter	Saturation, Brightness, Contrast, Sharpness, Hue
Video/Audio __________
Video Compression	H.264+(UltraH.264), H.265+(UltraH.265) Smart Event Codec
Audio Compression	G.711A, G.711U
Frame Rate	60fps@720P, 60fps@1080P (WDR ON)
Transmission Stream	Triple Stream (Code Rate: 128kb-10mb)
Network __________
Protocols	HTTPs, HTTP, TCP/IP V4-V6, ICMP, RTSP, RTCP, UDP, NTP, DHCP, DDNS, FTP, SNMP-V1-V2-V3, UPNP, P2P, NAT, Multi Cast
Compatibility	Onvif Ver2.6, Profile S, CGI, SDK, API
Max Users	10 Users
Streaming Method	Unicast, Multicast
Web Viewer	Internet Explorer
Software	Unlimited KDT CMS 256CH Per Monitor
Smartphone	IOS, Android Phone & Tablet

Function __________
Recording	FTP, NVR, CMS, NAS, SD Card, Iran Local Cloud
Record Type	Manual, Motion Detection, Smart Detection, Schedule
Alarm Triggers	All Intelligent Function
Event Action	Email, PTZ, Snapshot, Recording, Alarm Out, Buzzer, Pop up, Show Message
Intelligent Function	17 Smart Function Line Crossing, Area Intrusion, Face Detection, Audio Exception Detection, Unattended Objects, Object Missing, Region Entrance, Region Exiting, Fast Moving, Loitering Detection, People Gathering Detection, Parking Detection, Blurred Detection, Scene Change Detection, people counting, video shelter, motion detection
Interface __________
Network	RJ45(10/100mbps)+LEDIndicator on Cable
Audio	Audio Out, Audio In
Alarm	Alarm Out, Alarm In
CVBS	Yes
Power	PoE LAN, DC In
Control	No
Memory Slot	Yes, Micro SD (256Gb Max)
General __________
IP Rating	IP44 (Withhout Case) – IP67 (With Case) – ESD Protection
Power Supply	DC12V ± 25% – AC24V ± 25% – 180~220V AC
POE Supply	IEEE802.3af-Max 8W (0.166A)
Web Language	English, Persian

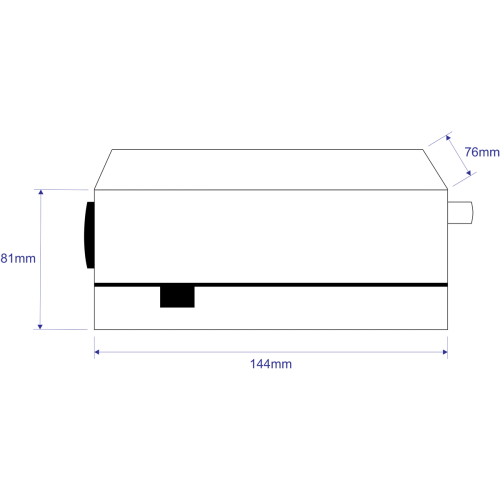

Dimension	144mm76mm81mm
Weight	600g
Operation Humidity	Indoor: Up to 90%RH / Outdoor: Depend On Cover
Operation Temp	Indoor: -35°C ~ +64°C / Outdoor: Depend On Cover
Warranty __________
Product Warranty	5 Year Gold Guaranty
MTBF	100K hrs min. MIL-HDBK-217F (25°)
