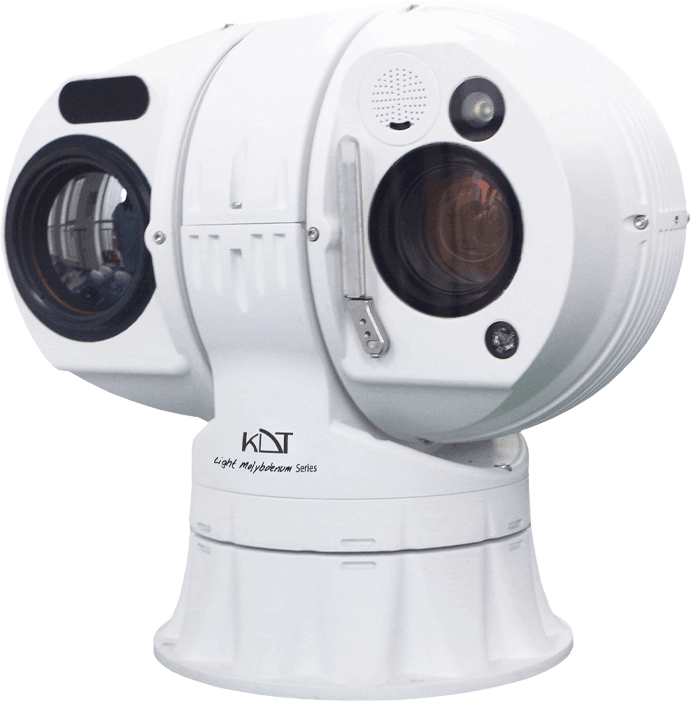

KI-TDV430LM20A-SW
Array
دسته بندی
لایت مولیبدنیوم
توضیحات محصول
Dual Lens , Thermal /Visible Camera , Long IR Rangeuncooled FPA sensor
12μm Pixel Size
≤45mK NETD
7.5～14μm, MWIR Spectral Ra
25~75mm Zoom Focal length
1/2.8” CMOS, Integrated ICR Dual Filter D/N Switch
8~320mm 40X Optical Lens
IP67, 6KV Surge Protection
قابلیت های هوشمند:
|
|
شرایط گارانتی :
|
| Visible Camera | |
| Sensor | Star Level CMOS, Integrated ICR Dual Filter D/N Switch (1/2.8″) |
| Resolution | 3840×2160 (8MP) |
| Frame Rate | 60@fps |
| Transmission Stream | 6Kbps~32Mbps, 60Hz |
| Min. Illumination | 0.0005Lux (Color), 0.0001Lux (B/W) |
| Lens | 8~320mm 40X Visible Lens, Optical Lens |
| Image Stabilization | Support |
| Defog | Support |
| Focus Control | Manual, Auto |
| Digital Zoom | 16X |
| Thermal Camera | |
| Sensor | 5th Generation Uncooled FPA Sensor |
| Resolution | 640×512 |
| Frame Rate | 25@fps |
| Pixel Size | 12µm |
| NETD | ≤45mK |
| Spectral Range | 7.5-14 µm, MWIR |
| Lens | 25-75mm Zoom |
| FOV (288×384) | 10.6°×7.9°~3.5°×2.6° |
| FOV (512×640) | 17.7°×14.4°~5.9°×4.7° |
| Angular Radian | 0.48~0.16mrad |
| Digital Zoom | 1~8X Continuous Zoom (Step 0.1) |
| DRI (Vehicle 2.3m²) | Detection: 6.3km; Recognition: 1.8km; Identification: 0.9km |
| DRI (Human 0.6m×1.8m) | Detection: 2.5km; Recognition: 0.7km; Identification: 0.35km |
| Fire Detection | 4km (3km for 2x2m Fire) |
| IVS Range | 2.3km for Vehicle; 0.8m for Human |
| Laser | |
| Effective Length | 600m |
| Image Processing | |
| Image Enhance | Stable operational temperature without TEC, starting time less than 4 seconds |
| ROI | 8 Areas |
| SDE | Support SDE digital image processing |
| Pseudo Color | 16 pseudo color and B/W, B/W inverse |
| AGC | Support |
| Ranging Ruler | Support |
| Strong Light Protect | Support |
| Temp Correction | Thermal imaging clarity not affected by temperature |
| Scene Mode | Support multi-configuration scenarios, adapt to different environment |
| PTZ | |
| Lens Servo | Support lens preset, focal length return and focal length location |
| Azimuth Information | Support angle real-time return and positioning; azimuth video overlay real-time display |
| Patrol | Support 16 cruise routes, each can support 256 preset positions |
| Rotation | Pan: 0-360°, Tilt: -90~+90° |
| Speed | Pan: 0.01~100°/s (max 200°/s), Tilt: 0.01~80°/s |
| Day/Night Patrol | 1-40 preset for day; 41-80 preset for night |
| Preset | 3000 |
| Enhance | Fan, Wiper, Heater attached |
| Watch Function | Preset bit, pattern, cruise, vertical, frame, panorama, apple skin, sweep line scan |
| Intelligent Features | |
| Fire Detection | Threshold 255 levels, targets 1-16 can be set, hot spot tracking |
| AI Analysis | Support intrusion detection, boundary crossing detection, entering/leaving area detection, motion detection, wandering detection, people gathering, fast moving, target tracking, items left behind, items taken; people/vehicle target detection, face detection; support 16 area settings; support intrusion detection people, vehicle filtering function; support target temperature filtering |
| Auto-tracking | Single/multi scene tracking; panoramic tracking; alarm linkage tracking |
| AR Fusion | 512 AR intelligent information fusion |
| Image Fusion | Support 18 kinds of double light fusion mode, support picture-in-picture function |
| Safety & Diagnostics | |
| Parameter Setting | OSD Menu Remote Call Operations |
| Diagnostic Functions | Disconnection alarm, support IP conflict alarm, support illegal access alarm (illegal access times, lock time can be set), support SD card abnormal alarm (SD space insufficient, SD card error, no SD card), video masking alarm, anti-sun damage |
| Life Index Recording | Working time, shutter times, ambient temperature, core device temperature |
| Safety Control | Illegal access alarm, lock time can be set |
| User Management | Three levels of user rights: normal user, administrator, operator |
| Security Mode | Support IP whitelist and blacklist, MAC whitelist and blacklist |
| Mis-login Lockout | User mis-login lockout |
| Audio | |
| Record Rate | 32Kbps~16Mbps |
| Audio Encoding | G.711A, G.711U, G.726 |
| Interface | |
| Ethernet | RS-485 (PELCO D protocol, baud rate 2400bps), RS-232 (option), RJ45 |
| Protocol | IPv4, IPv6, HTTP, HTTPS, 802.1x, QoS, FTP, SMTP, UPnP, SNMP, DNS, DDNS, NTP, RTSP, RTP, TCP |
| Video Output | PAL, NTSC |
| Power | DC24V |
| Compression | H.265, H.264 |
| Environmental | |
| Operating Temperature | -25°C~+55°C |
| Storage Temperature | -35°C~+75°C |
| Humidity | <90% |
| Ingress Protection | IP67 |
| Housing | PTA three-resistance coating, Seawater corrosion resistance, Aviation waterproof plug |
| Anti-fog/Salty | pH 6.5-7.2 |
| Power Consumption | 60W (Peak); 40W (Normal) |
| Weight | 10kg |
| Size | 312mm×200mm×296mm (LxWxH) |
| Mounting | Front, side, wall, hanging, vehicle, tripod pro-rack |
| Optional Features | |
| 4G | 4G Module |
| LRF | Up to 1km |
| Absorber Platform | Vehicle use shake-absolve platform |
| GPS | Accuracy: <2.5m; Autonomous 50%: <2m (SBAS) |
